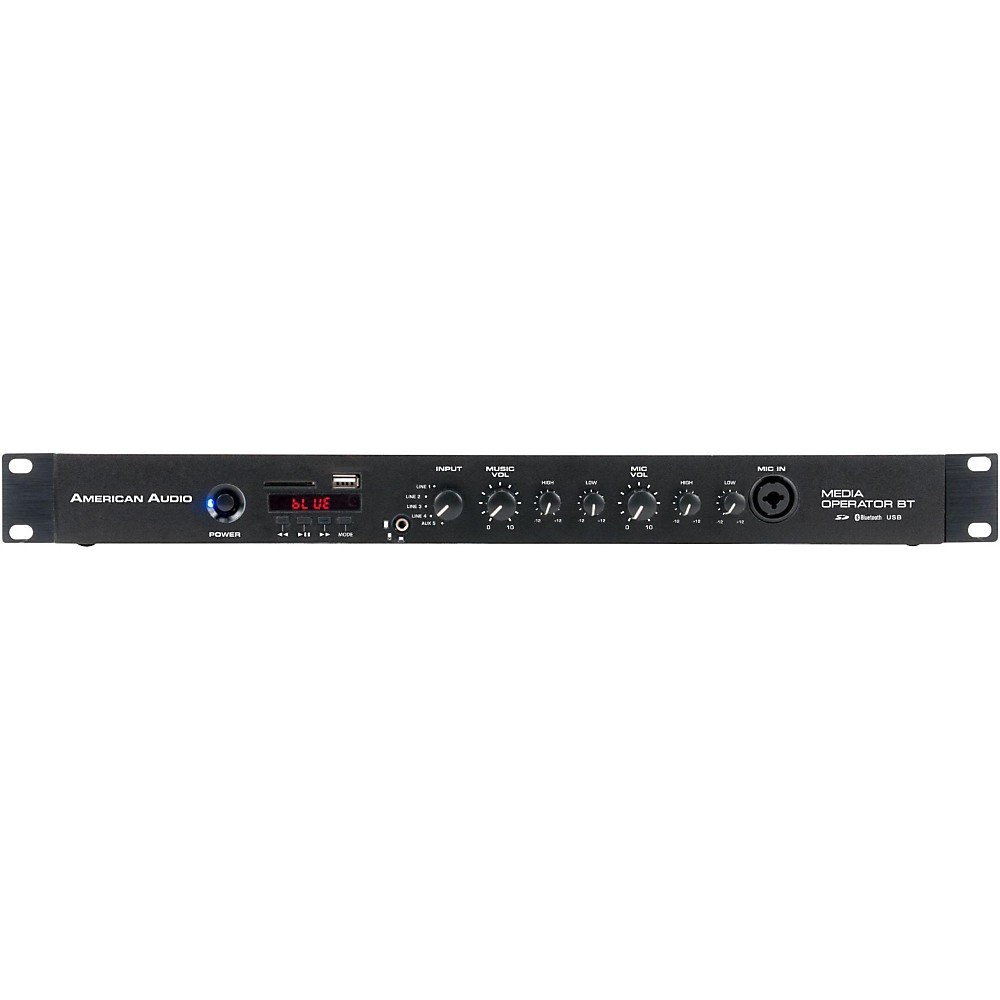

American Audio Media-operator-bt Bt 1ru Bluetooth Media Player

The American Audio Media Operator BT is a compact, 1U, multi-format, multi-line switching system that is perfect when you need a basic compact mixer solution or want to expand or add Blue Tooth input to an existing system. Perfect for portable applications as well as fixed installations. Features SD/USB/ Bluetooth input with transport control.

• (1) American Audio Media Operator BT
• (1) IEC Power Cord
• (1) User Guide

• XLR ¼” TRS and RCA stereo outputs
• 4 Stereo Line Inputs (RCA)
• 1 Mic input, XLR/1/4” Combo connector
• SD/USB/ Bluetooth input with transport control
• Master Volume
• Mic Volume
• Separate Bass & Treble for Music and Mic
• Removable Rack Ears

• Frequency Response: 20Hz-20kHz ±0.5dB
• Input Sensitivity: 1V
• S/N Ratio: 100 dBA
• THD (typical): 0.1%
• Input Impedance:
  • Balanced: 20 kHz
  • Unbalanced: 10kHz
• Input Voltage: AC 110-230V; 50Hz-60Hz
• Net Weight: 3.75 lbs. / 1.7 kg
• Dimensions (W x D x H): 19" x 4.05" x1.75" / 483mm x 103mm x 44mm
